Getting started

Introduction

ESQapp is a graphical user interface (GUI) for working with the projects implemented in the {esqlabsR} package.

Opening the project

ESQapp operates with the projects by loading a valid ProjectConfiguration file. In this example, we will use an example project created by executing

library(esqlabsR)

init_project()

Start the app by calling

ESQapp::run_app()

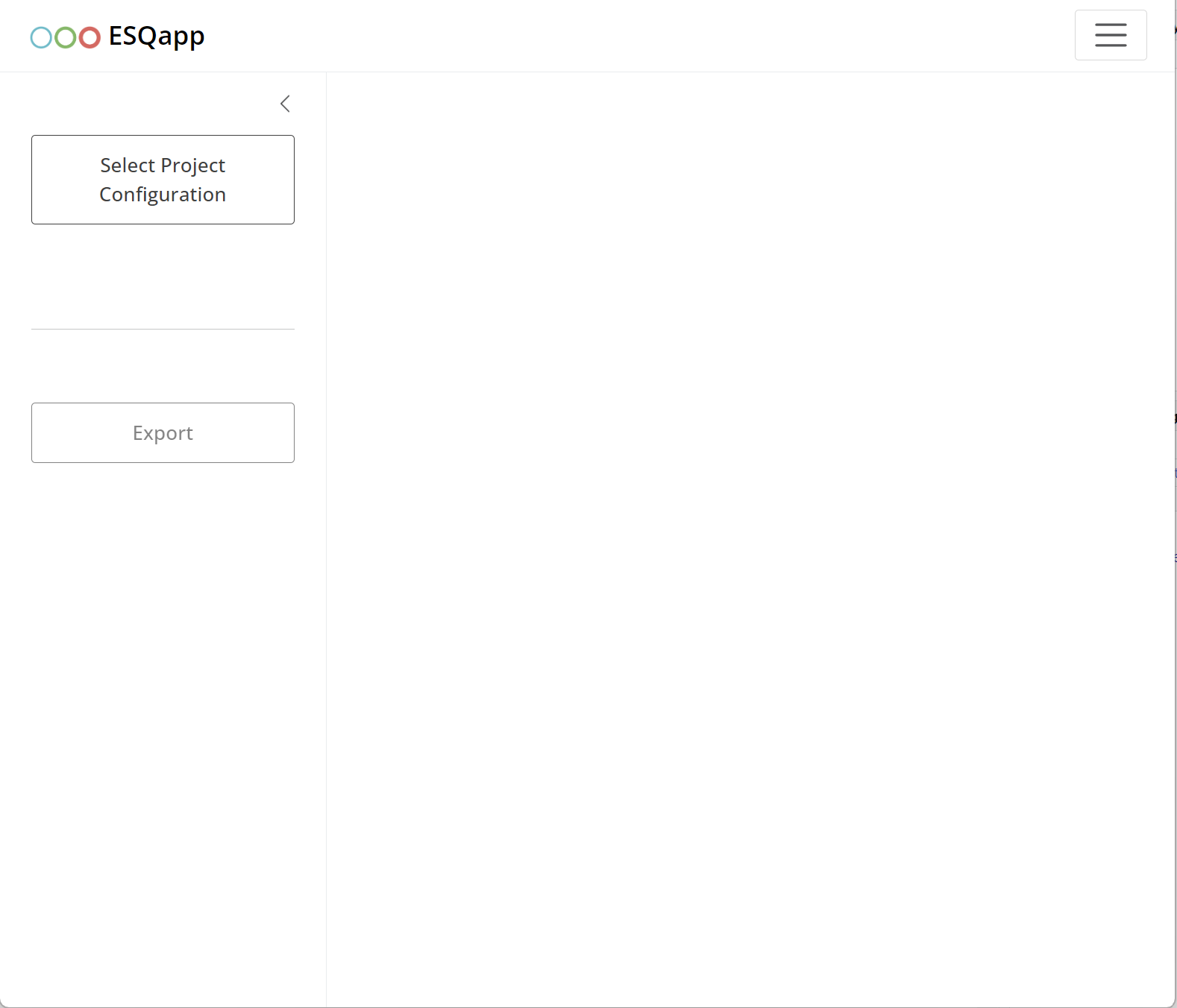

starting screen

Click on “Select Project Configuration” and select the ProjectConfiguration.xlsx file of your project. The app will load the project and show the contents of the scenario definitions, individuals, populations, and plots.

import project configuration

Design Scenarios

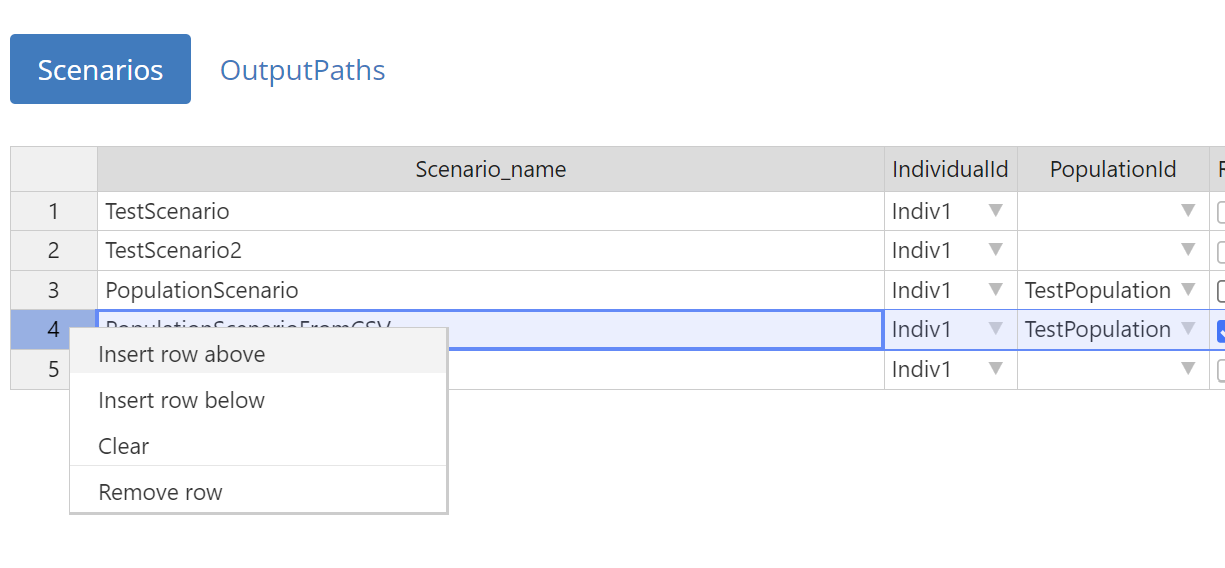

You can browse, edit, add new, or remove existing scenarios. To edit a field, e.g., Scenario_name, double-click on it. To remove a scenario or add a new one, right-click on a row and select “Insert” or “Remove row”.

Scenarios with duplicate names are highlighted in red, as each
Scenario_name must be unique.

unique scenario

The main properties that can be defined for a scenario are:

• The IndividualId column specifies the individual for a scenario.
  This column shows a drop-down list with all individuals defined in the Individuals tab. To unassign an individual from a scenario:

  • Right-click on the cell and select Clear,
  • Press the Backspace key on your keyboard, or
  • Select --NONE-- option in the drop-down list.

• The population is specified for a scenario in the column PopulationId, which shows a drop-down list with all populations defined in the Populations tab. To unassign a population from a scenario:

  • Right-click on the cell and select Clear,
  • Press the Backspace key on your keyboard, or
  • Select --NONE-- option in the drop-down list.

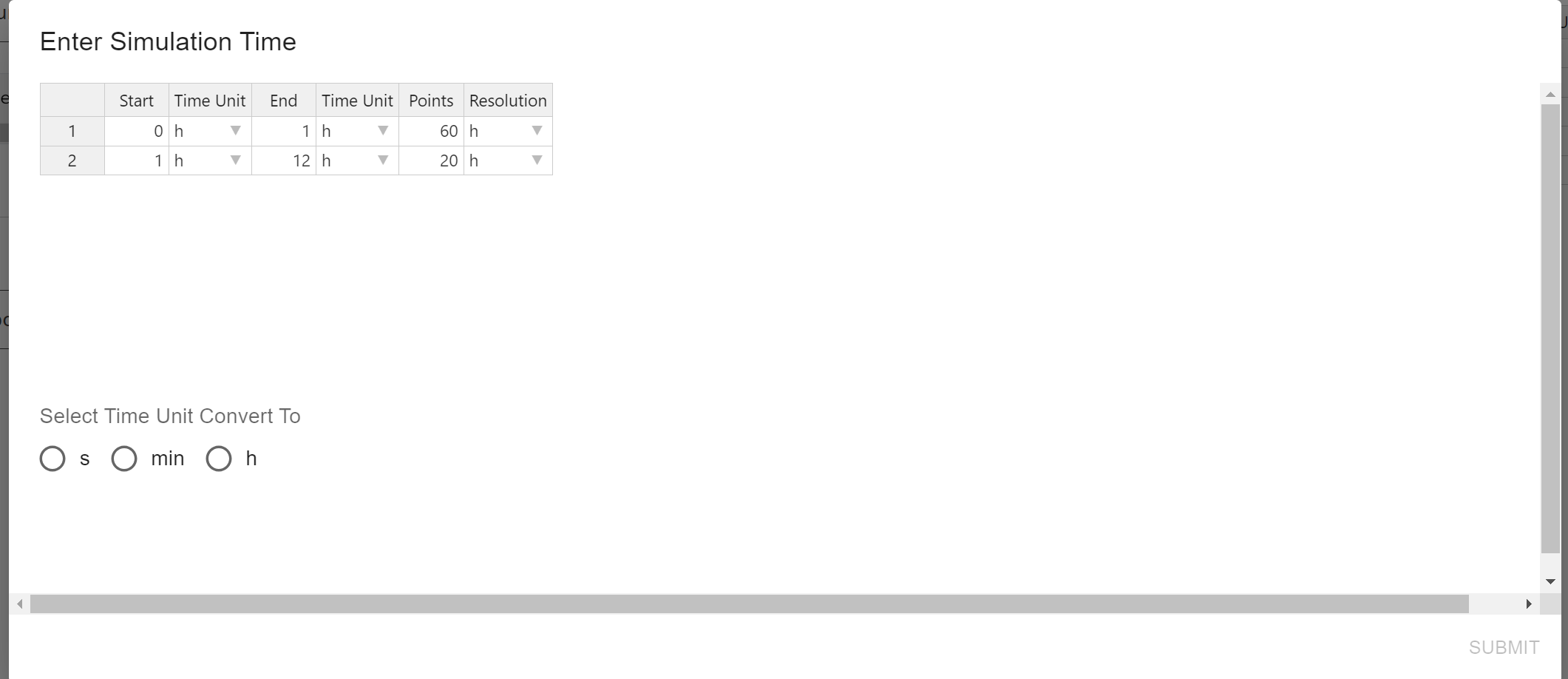

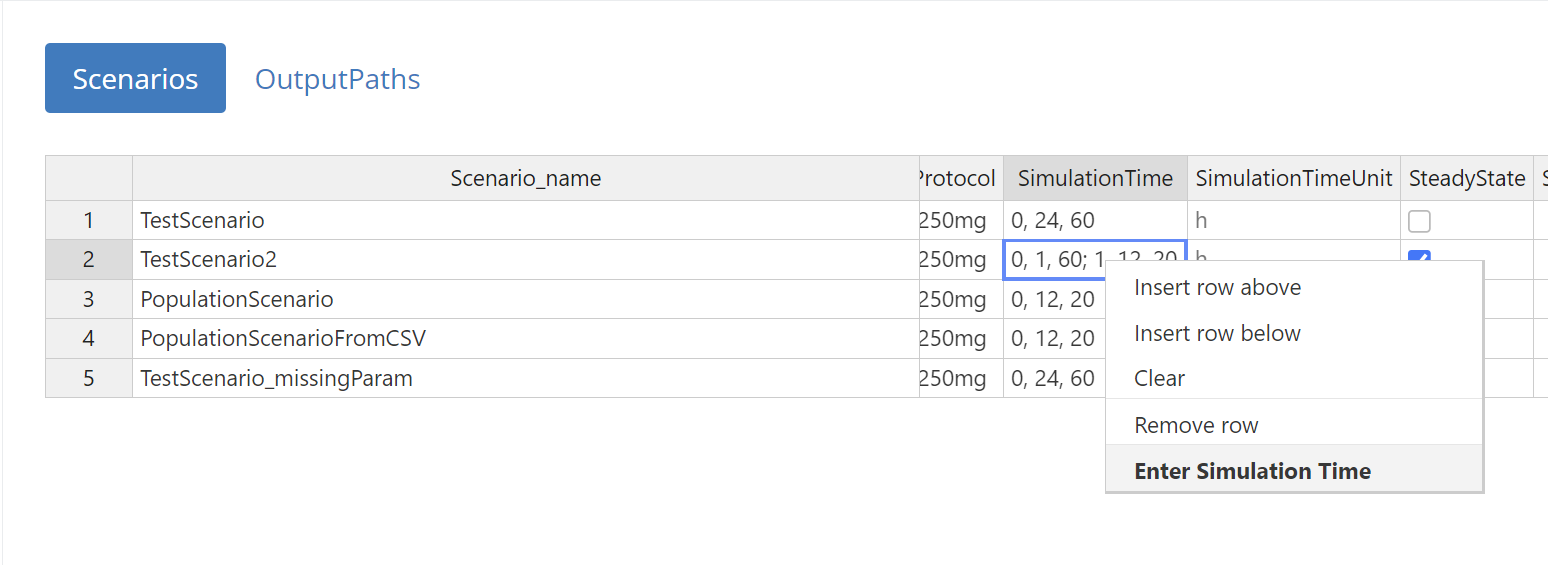

• To edit the simulation time of a scenario, double-click on the
  SimulationTime cell. This will open a modal window where you can
  configure the output intervals of the simulation.
  In this window, you can add, remove, or edit intervals. For each
  interval, you can define the start and end time, the unit, and the
  resolution.

  Since the original Excel structure does not allow mixing different time
  units within the output interval definition, all values are
  automatically converted to a target unit. The target unit is taken
  from the first unit cell of the table and is stored in the read-only
  column SimulationTimeUnit.

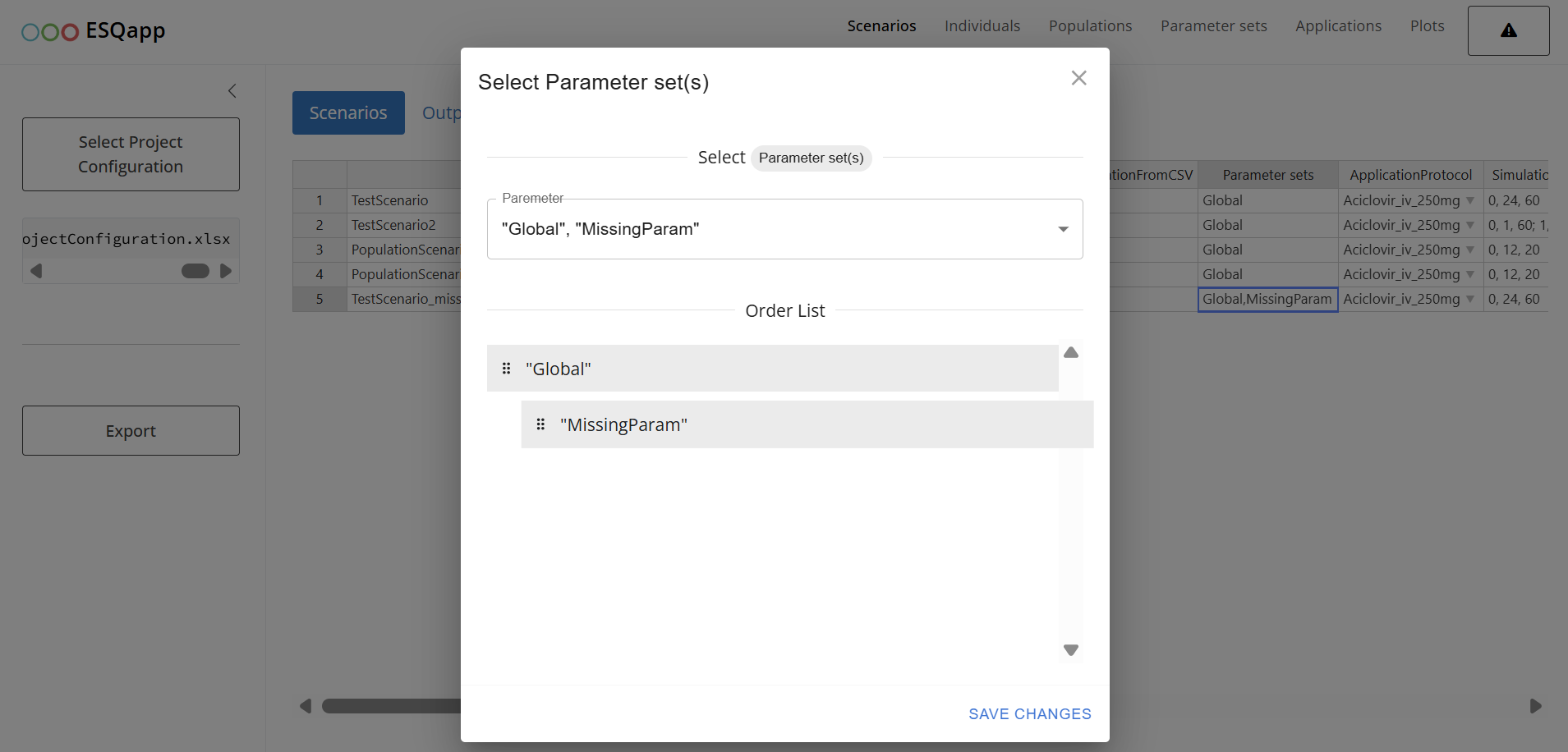

• Parameter sets are defined in the Parameter sets column.
  When you double-click on a cell in this column, a list of parameter sets
  (from the Parameter sets tab) is displayed. You can then select the
  desired parameters and arrange their order to include them in the scenario.

• The applications is specified for a scenario in the column ApplicationProtocol, which shows a drop-down list with all applications defined in the Applications tab. To unassign a application protocol from a scenario:

  • Right-click on the cell and select Clear,
  • Press the Backspace key on your keyboard, or
  • Select --NONE-- option in the drop-down list.

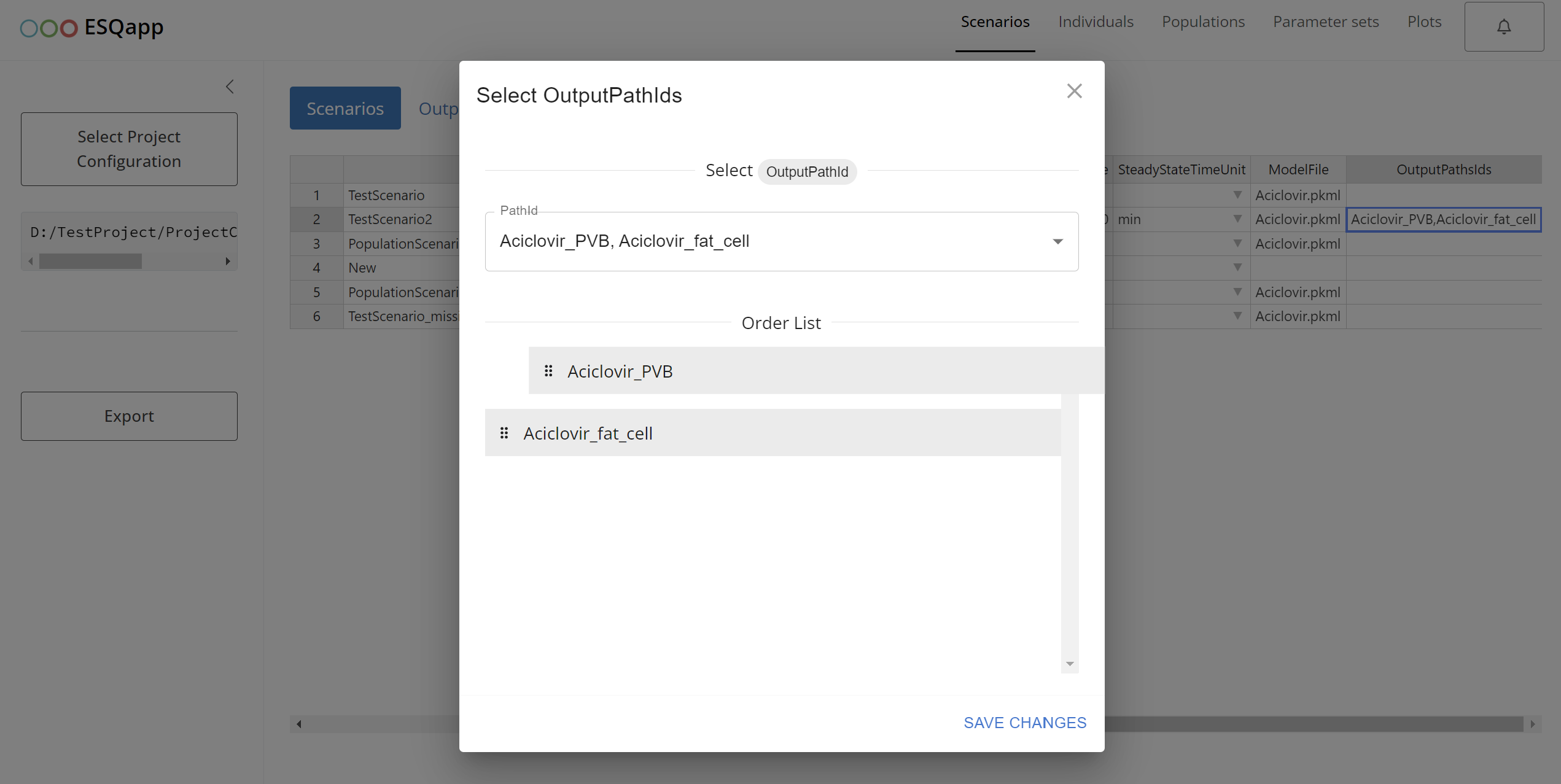

• Output paths are defined in the column OutputPathsIds. When double-clicking on a cell, a list of output paths defined in the OutputPaths tab is presented and the user can select the paths that should be added to the scenario.


Individuals

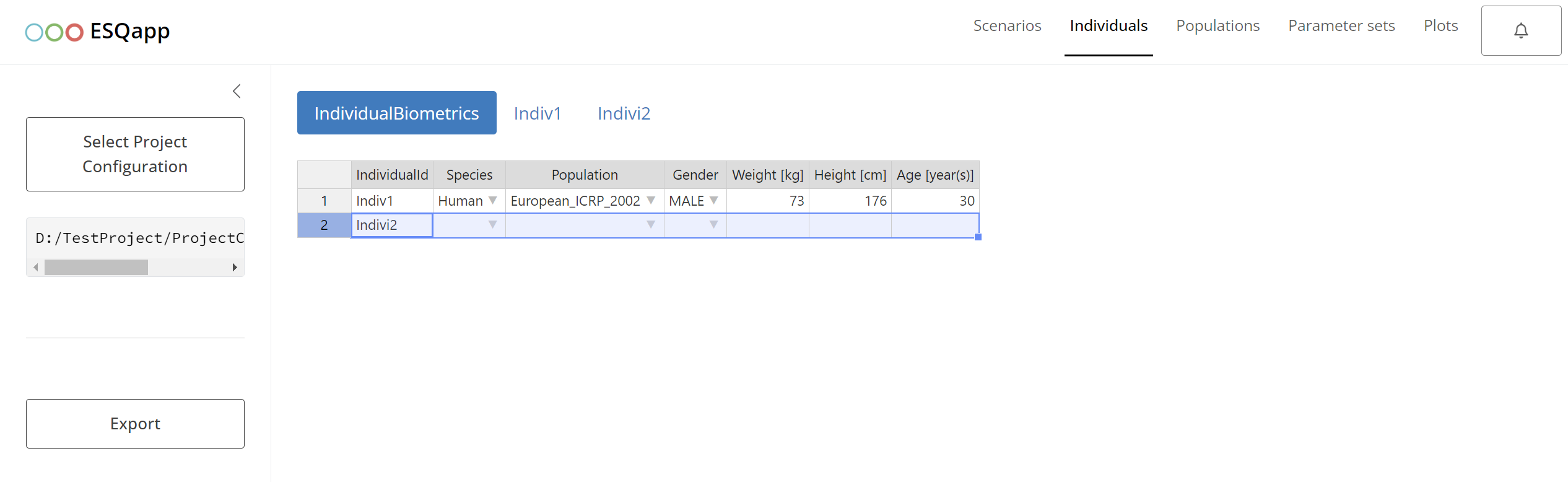

The individuals assigned to the scenarios must be specified in the Individuals tab. To add a new invidividual, right-click on an existing entry and select “Isert row below”. After entering the name of the individual, a new individual parameters sheet is added.

To map a protein to ontogeny, define a new protein–ontogeny
relationship, or edit an existing one, double-click the
Protein Ontogenies cell. This will open a modal window for managing
the mapping.

protein-ontogenies

Populations

Populations are defined in the Populations tab. To map a protein to ontogeny, define a new protein–ontogeny
relationship, or edit an existing one, double-click the
Protein Ontogenies cell. This will open a modal window for managing
the mapping.

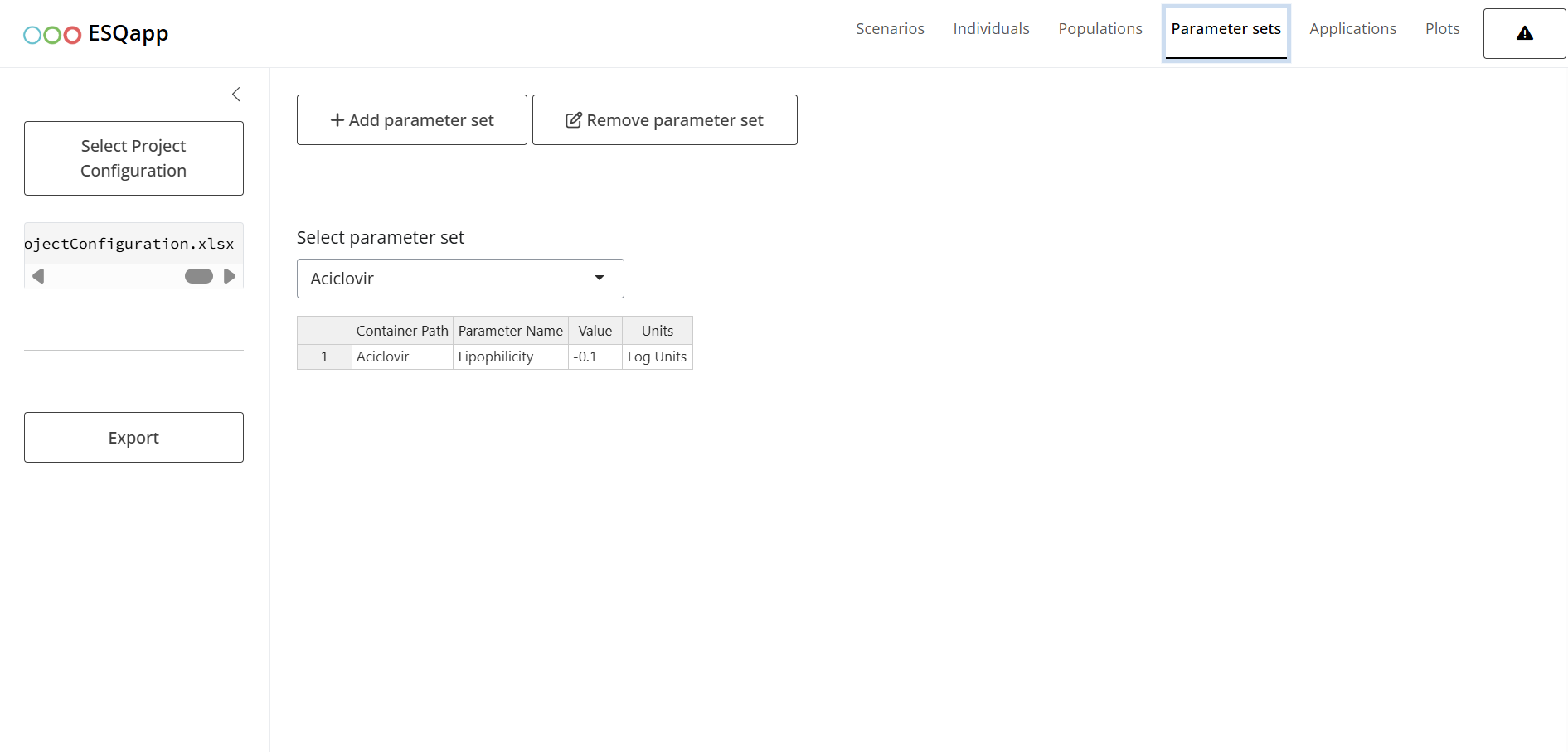

Parameter sets

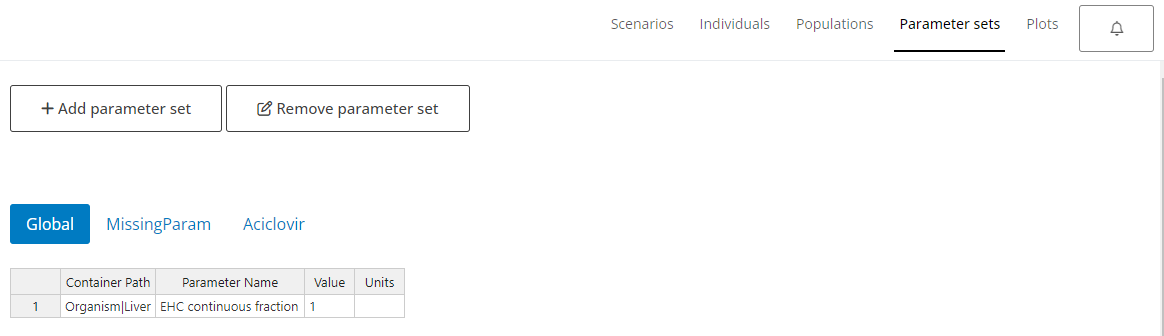

Parameter sets specified in the column Parameter sets of the Scenarios tab are listed in the tab Parameter sets.

parameter sets

To add new entries, right-click on a row and select “Insert row” or “Remove row”. To add a new parameter set (excel sheet), click on “Add parameter set”.

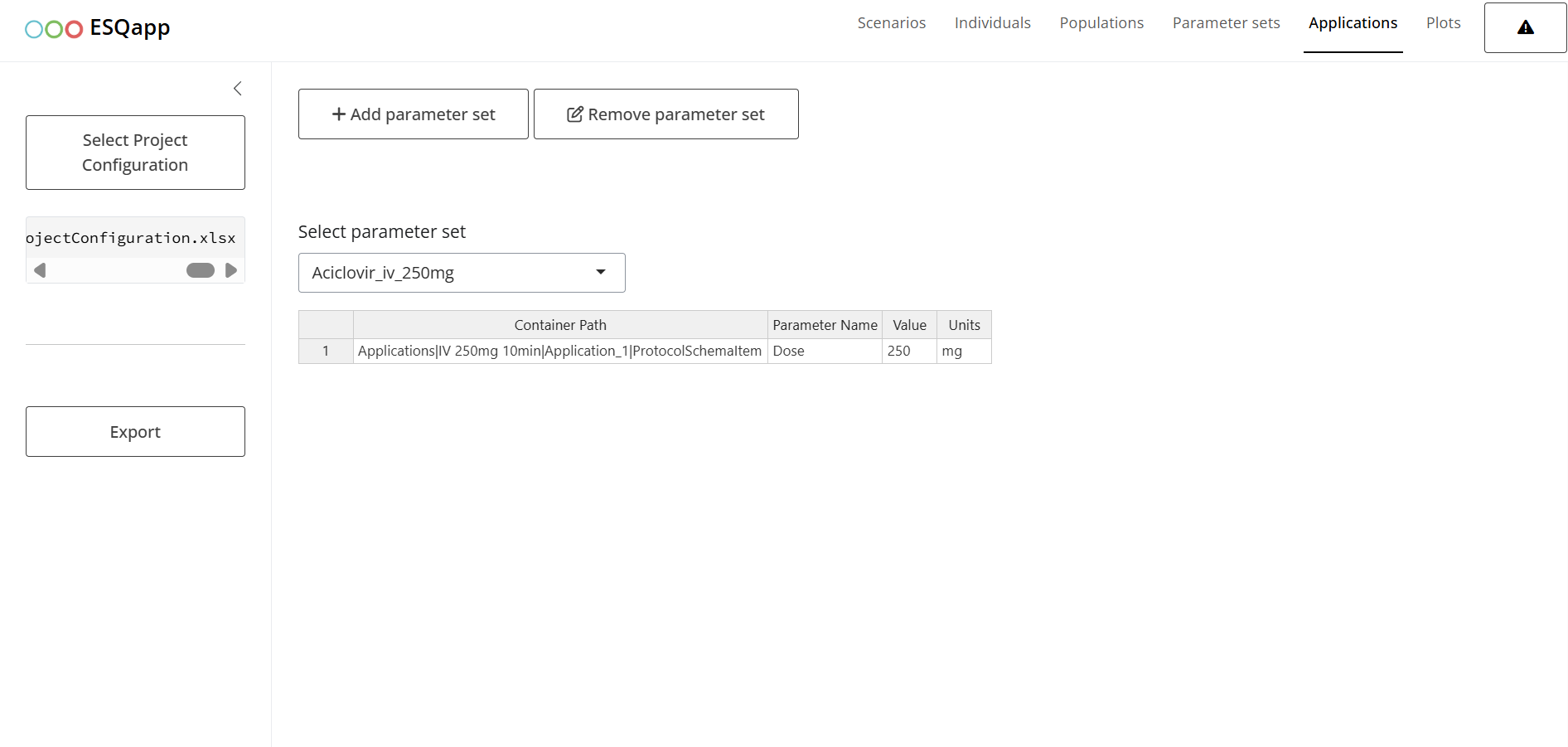

Applications

Application specified in the column ApplicationProtocol of the Scenarios tab are listed in the tab Applications.

To add new entries, right-click on a row and select “Insert row” or “Remove row”. To add a new parameter set (excel sheet), click on “Add parameter set”.

applications

Plot Results

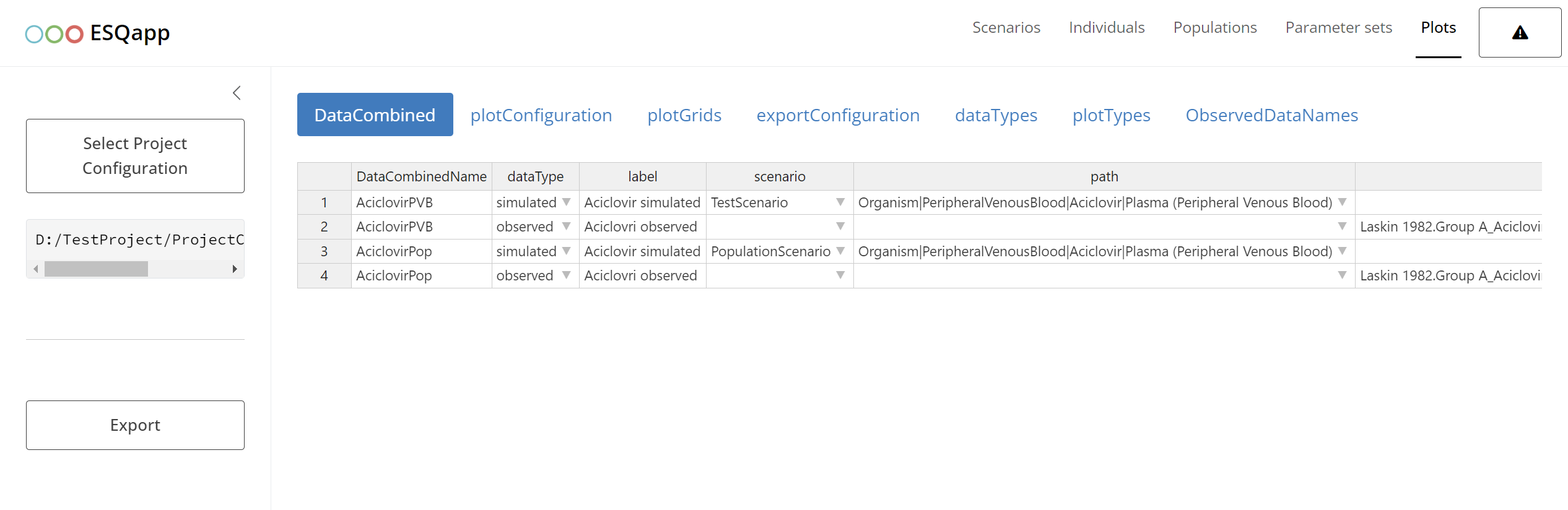

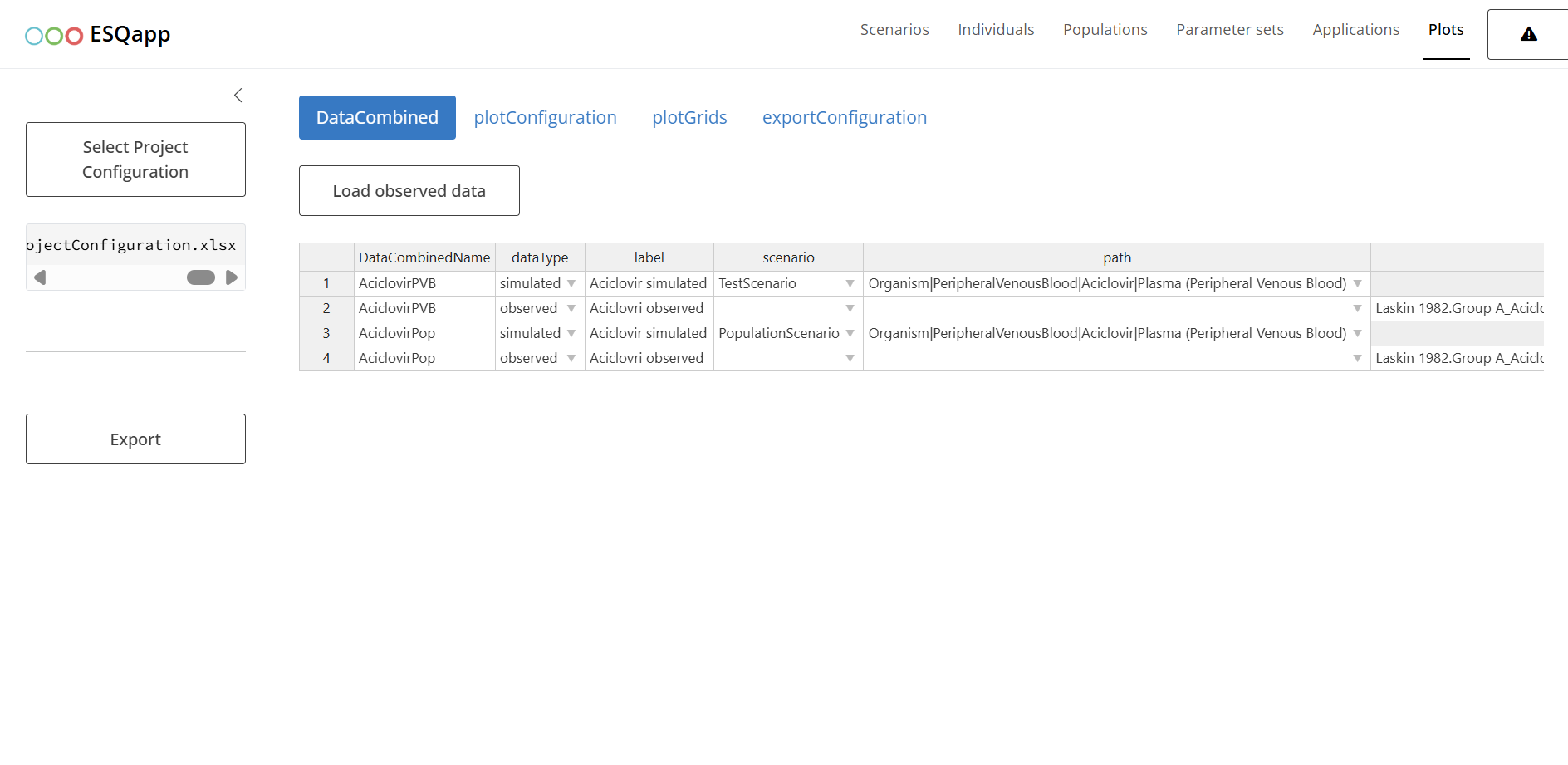

Definition of the figures within the esqlabsR Plotting Workflow is supported by the ESQapp in the tab Plots.

plots

The DataCombined tab defines the mappings between simulation results
and observer data. In this tab, the app allows you to select scenarios
(from the Scenarios tab) and output paths (from the
Scenarios|OutputPaths list).

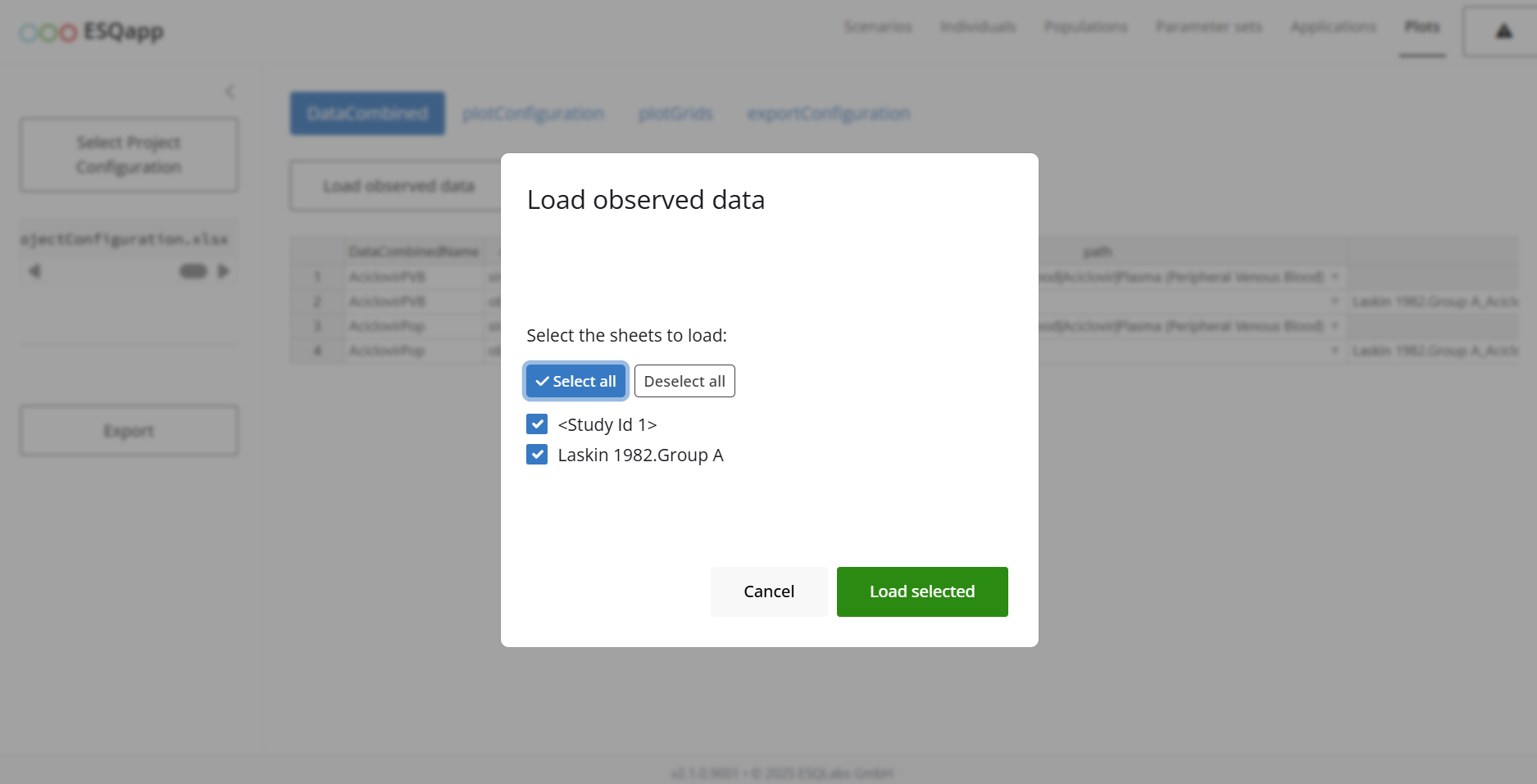

To load observed data, click the Load Observed Data button. This
opens a modal window displaying the available observed sheet(s). You can
select the sheet(s) to load by marking the corresponding checkboxes.

plots-load-observed-data

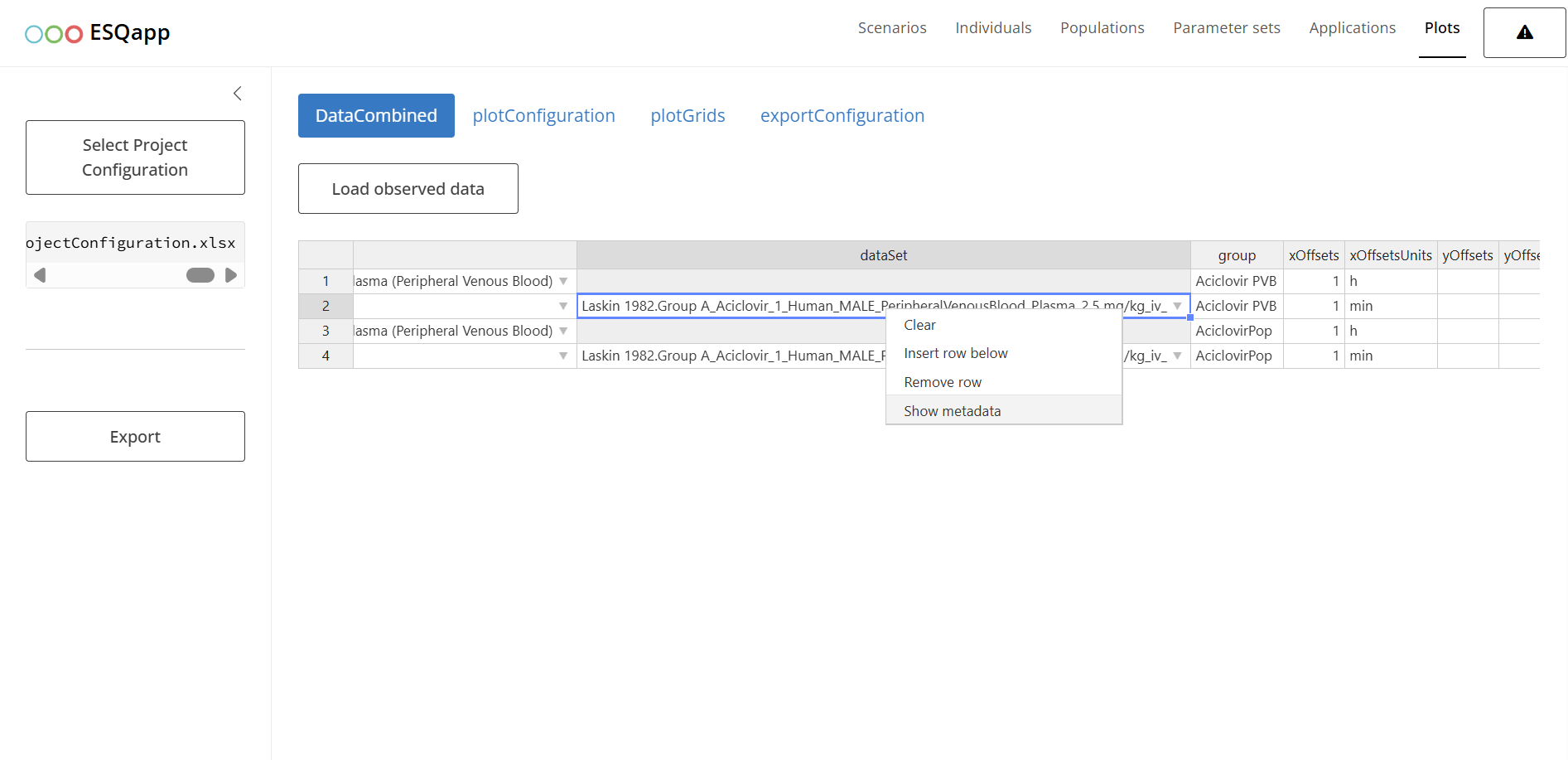

Once loaded, the names of the observed sheets become available as a list
in the drop-down of the dataSet column. By right-clicking on a cell in
the dataSet column, you can access a context menu with the option
Show metadata.

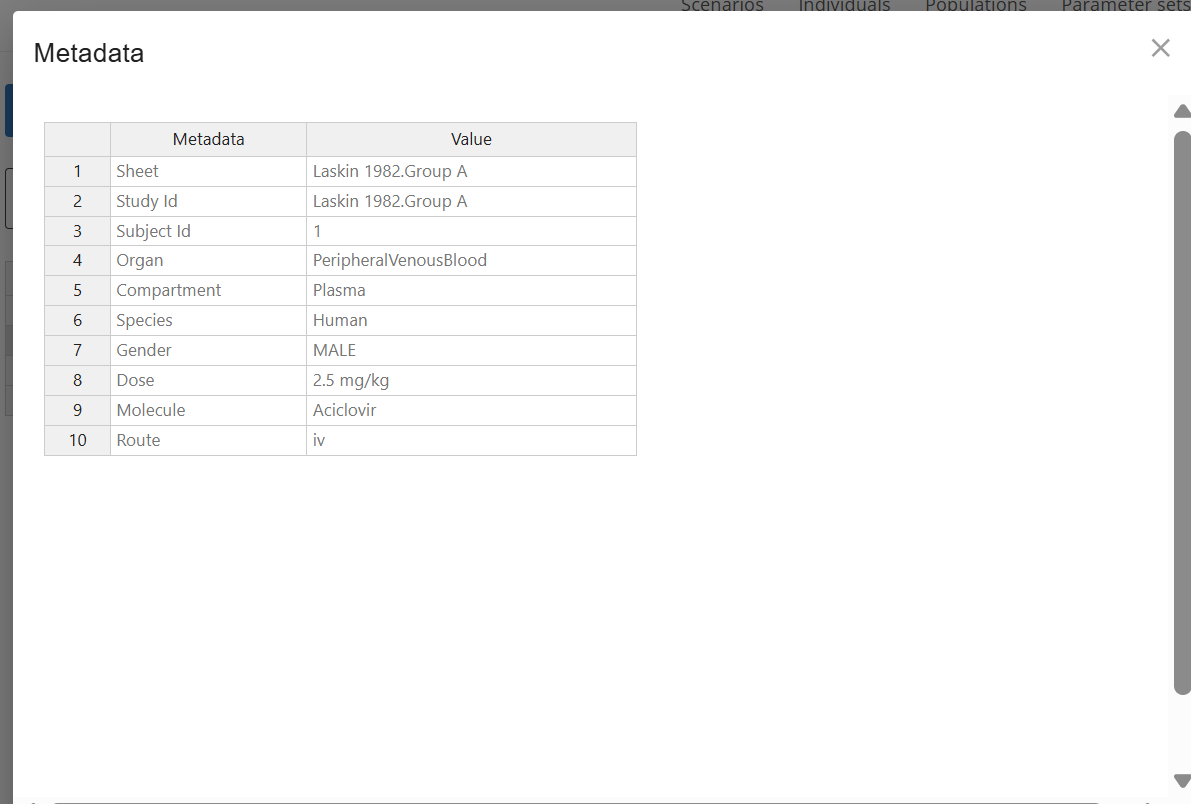

Selecting this option opens a modal window with a
metadata table. This table is read-only and available only for
previously loaded observed data.

plots-load-observed-metadata

Applying the changes

WARNING: Closing the app without saving will loose all changes made to the configurations!

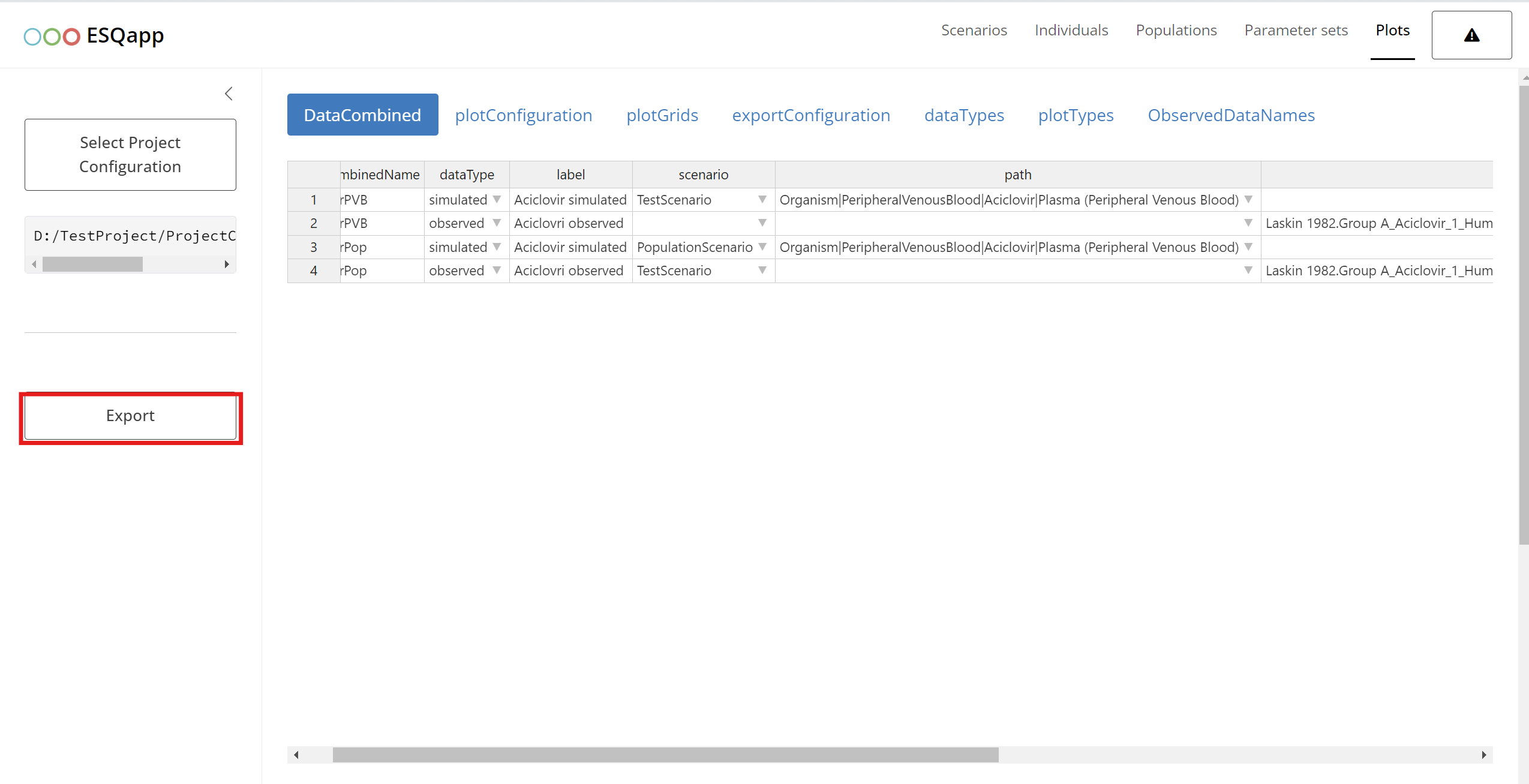

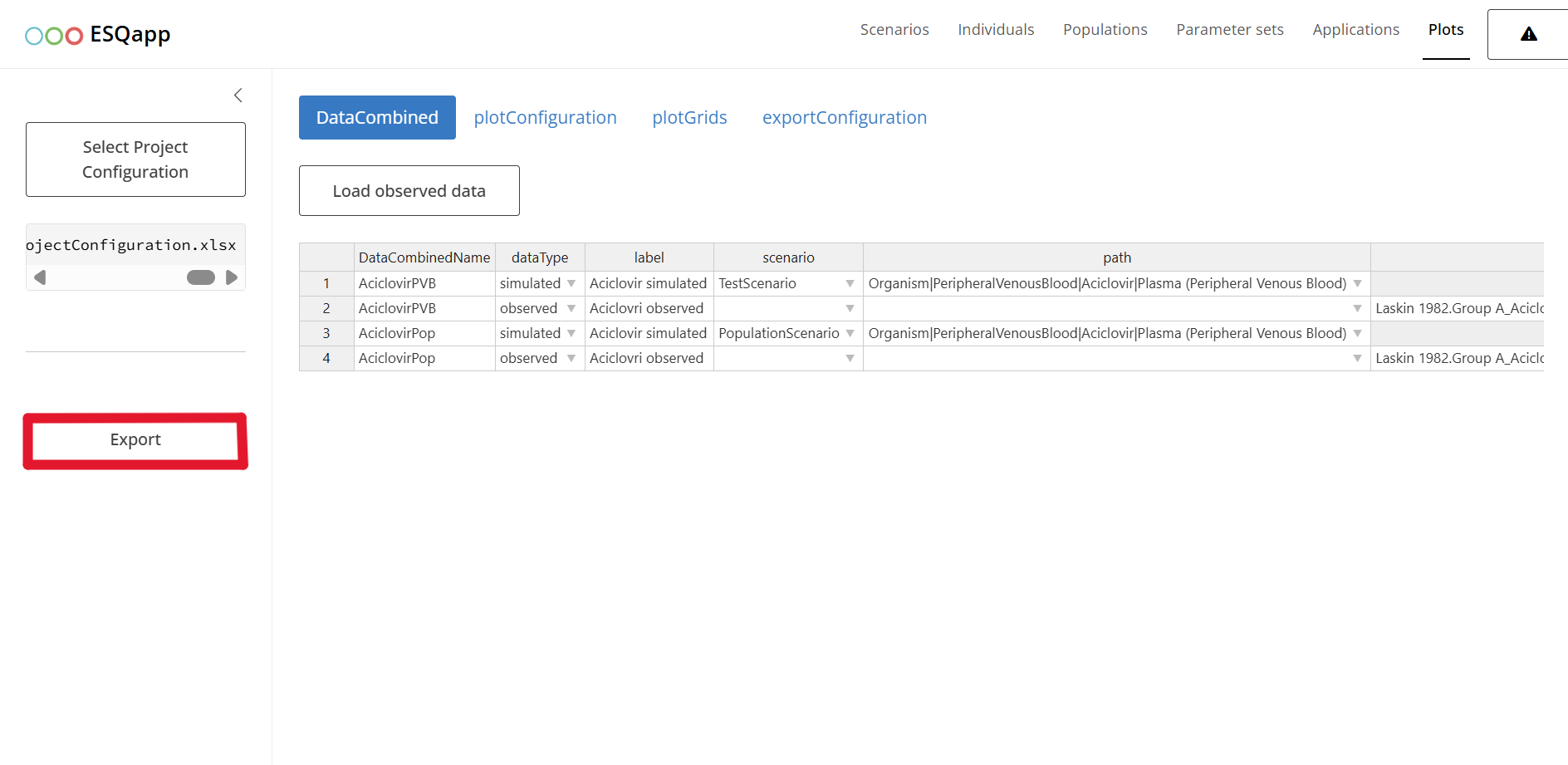

After editing the scenarios, plots, or other configurations, the changes must be saved by clicking on the “Export” button.

export

The changes will be written into the Excel files. Of course, you can still manually edit the Excel files.
